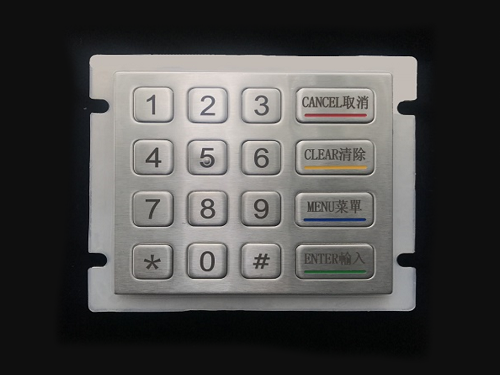

Product Name: IP67 metal keypad
Product P/N：GZ-B023013

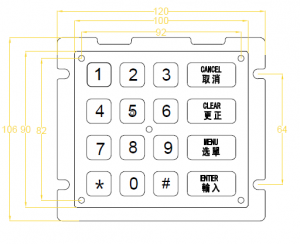

Product Size: 100*90mm
Product Description：Waterproof stainless steel keyboard, numeric keys and six function keys, compact layout of buttons, 0.5mm long button stroke, installation method from inside to outside, the whole thickness is: 30.6mm, with full waterproof silicone design, waterproof grade IP67, stainless steel Panel and laser engraved button design, the mold is matched with precise and accurate, and the surface treatment is beautiful and generous;
Nstallation：CAD
Product Application：It mainly applied to various kinds of place of no regulation or semi-regulatio information terminal; for example internet terminal University, Market Hotel, Bank,Airport,Station,and another information station of public place,Automatic ticket rendor,Gas station,Automatic Teller Machine(ATM),Public telephone ect;
Mainly Features：
- Stainless steel panels and buttons prevent deliberate damage, especially in harsh environments.
- It is installed by silica gel and the waterproof rating is IP67.
- The keyboard after installation is beautiful and plug and play.
- The metal keyboard surface button is very good for preventing smashing, not easy to bend and detach, so as to prevent the button from falling off and being damaged.
- Customize any key surface in multiple languages to suit different countries and various custom styles.
- Easy to install, provide USB interface mode to connect the host for keyboard operation.
Mechanical Specifications：
- Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.
- Design of the key: Square Key with character of laser engraving and corrosion.
- Key Size: 13.8mm*13.8mm，13.8*27.8mm；
- Key`s travel ：0.5mm
- Lifetime of the key: Operating more than 2Million per key.
- Strength of the key: 1.2N+/-0.1N (Contact with strength)
- Front Panel: import printing-brush SUS304 stainless steel with 1.5 thickness.
Electric parameter：
- Operating current: Direct current+5V/-5%
- working current：20mA
- Expected life-time：>5yer
- Button switch technology: Rubber key
- Interface Technology：USB，PS2，R232，8PIN
- Operating System：DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation：
- Operating Temperature：-20℃to+60℃
- Storage Temperature：-30℃to+70℃
- Relative Humidity: 30-90% without Condensation dew
- Atmospheric Pressure：50-100Kpa
- IP Level : IP67( static state ) / IP (Dynamic state)
