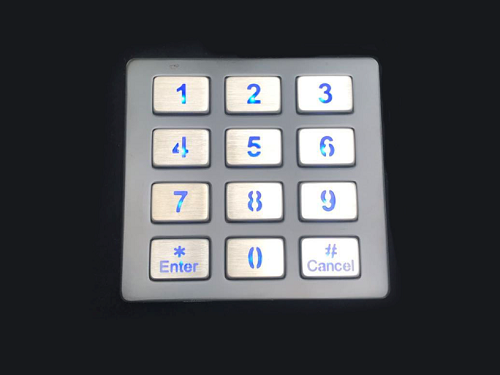

Product Name：LED metal keypad
Product P/N：GZB017010A
Product dimension：100*94mm
Product Description: It is stainless steel keypad of waterproof and dustproof, adopts rubber design,
With digital keys and 6 function keys, the keys are compact layout with 2.0mm long-travel. It is
Assembled from inside to outside, the total thickness is 28 mm ( including bottom case). It adopts the
Design of whole stainless steel overly, rubber keys and laser engraving, and with the precision tooling, the surface treatment beautiful and magnificent.
Product Application：
It mainly applied to various kinds of place of no regulation or semi-regulation information
terminal.For example Internet terminal, University, Market, Hotel, Bank, Airport, Station, and
another information Station of public place, Automatic ticket rendor, Gas station, Automatic Teller Machine(ATM), Public telephone ect.
Mainly Features：
1.LED letter with flashment, environmental protection, energy saving, lifespan can reach over 30000 hours, it is very good to use in the dark place or in the night.
2.Both of stainless steel panel and keys can good protect to avoid the deter vandals, even under
bad condition, it still can work well.
3.Waterprood/dirt-proof execution according to degree of protection IP65, waterproof and
Dirt proof encapsulation with unique.
4.With firm tactile key feel , full long carton-on-gold key switches, with unique double over-travel protection.
5. Metal keypad surface is good to guard from thieves, and it is difficult to bending and be out, so
it can prevent key off and damage.
6. We can customer made all kinds of keypad with multiple languages as per the customer’s
needed, it can meet varying country and make different styles.
7. It is easy for installation, supply USB interface mode to contact the host computer for keypad operation.
Mechanical Specifications：
1. Key: It is with 12 keys, and use port printing-brush SUS304 stainless steel material.
2. Design of the key: Square raised Key with character of laser engraving and corrosion.
3. Key Size: 14.7mm*21.7mm，
4. Key`s travel ：2.0mm
5. Lifetime of the key: Operating more than 2Million per key.
6. Strength of the key: 1.2N+/-0.1N (Contact with strength)
7. Front Panel: import printing-brush SUS304 stainless steel with 1.5mm thickness.
Electric parameter：
1. Operating current: Direct current+5V/-5%
2 working current：20mA
3 Expected life-time：>5yer
4. Button switch technology: Carton-on-Gold
5. Interface Technology：USB，2*5PIN
6. Operating System：DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation：
1. Operating Temperature：-20℃to+60℃
2. Storage Temperature：-30℃to+70℃
3. Relative Humidity: 30-90%
