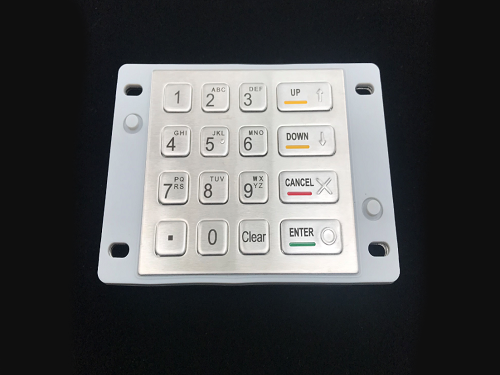

Product Name：Metal keypad
Product P/N：GZB009020
Product dimension：100*91.5mm
Product Description: It is keypad of waterproof and with digital keys and 6 function keys , the keys is compact layout and it with 0.5mm long-travel, it is assembled from down to up, the total thickness
is 11 mm. It adopts waterproof silicon rubber letter, the whole stainless steel overly and laser engraving, and with the precision tooling, the surface treatment beautiful and magnificent.
Product Application：
It mainly applied to various kinds of place of no regulation or semi-regulation information
terminal .for example Internet terminal,, University, Market , Hotel, Bank, Airport, Station, and
another information station of public place, Automatic ticket rendor, Gas station, Automatic Teller
Machine(ATM), Public telephone ect.
Mainly Features：
1.Both of stainless steel panel and keys can good protect to avoid the deter vandals, even
under bad condition, it still can work well.
2 It is adopted rubber assembling, Effective for waterproof effect.
3. After the keypad is installed, it is looks beautiful and generous, plug and play.
4.Metal keypad surface is good to guard from thieves, and it is difficult to bending and be out, so
it can prevent key off and damage.
5. We can customer made all kinds of keypad with multiple languages as per the customer’s needed, it can meet varying country and make different styles.
6.It is easy for installation, supply USB interface mode to contact the host computer for keypad
operation.
Mechanical Specifications：
1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.
2. Design of the key: Square Key with character of laser engraving and corrosion.
3. Key Size: 13.8mm*13.8mm，13.8*27.8mm
4. Key`s travel ：0.5mm
5. Lifetime of the key: Operating more than 1Million per key.
6. Strength of the key: 1.2N+/-0.1N (Contact with strength)
7. Front Panel: import printing-brush SUS304 stainless steel with 1.5MM thickness.
Electric parameter：
1. Operating current: Direct current+5V/-5%
2 working current：20mA
3 Expected life-time：>5yer
4. Button switch technology: imported gilded metal dome
5. Interface Technology：USB, 8PIN
6. Operating System：DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation：
1. Operating Temperature：-20℃to+60℃
2. Storage Temperature：-30℃to+70℃
3. Relative Humidity: 30-90%
