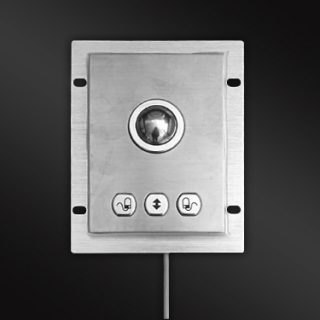

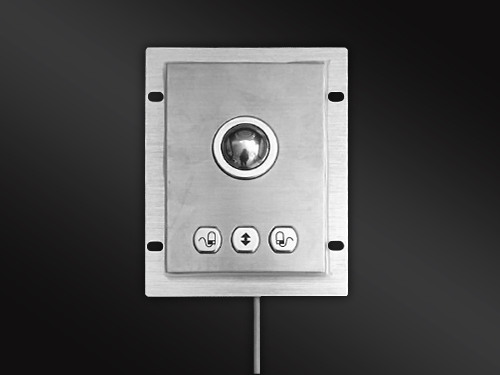

Product name: Metal trackball
Product P/N: GZ-D001014
Product dimension: 100*80mm, the diameter of the ball: 25mm
Product description: Vandal stainless steel metal trackball, the globe and the roller adopt superior wearable stainless steel material design, and with the precision tooling, the surface
treatment beautiful and magnificent.
Product Application：
It mainly applied to various kinds of place of no regulation or semi-regulation information
terminal .for example Internet terminal,, University, Market , Hotel, Bank, Airport, Station, and
another information station of public place , Automatic ticket rendor, Gas station, Automatic
Teller Machine( ATM), Public telephone ect.
Electric parameter：
1. Operating current: DC+5V/-5%
2. working current：10mA
3. EMR: EN50081-1
4. EMI: EN50082-1
5. EMC standard:89/336/EEC EN55022:1988+A1: 2003 EN55024:1988+A1:2001+A2:2003
6. Expected life-time：>5yer
7. Trackball DPI: 800dpi
8. Interface Technology：USB，PS2
9. Operating System：DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation：
1.Working temperature：0℃to+60℃
2.Storage temperature：-25℃to+70℃
3. Relative Humidity: 30-90% without Condensation dew
4. Atmospheric Pressure：60-106Kpa
5. Salt mist test：96hours，IEC60512-6
6. 40℃ high wet test：21days，IEC60512-6
7. 85℃ high dry test：10days，IEC60512-6
Reliability:
1. MTBF:>20000H
2. MTTR:<30min
