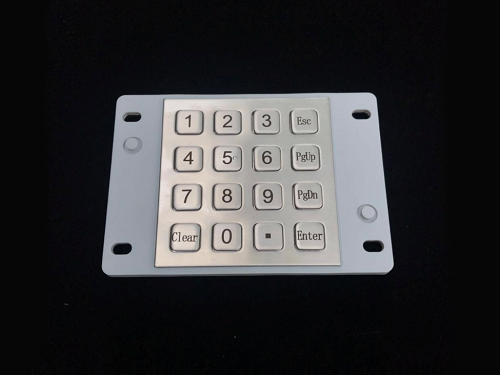

Product Name：Waterproof metal keypad
Product P/N：GZB005020 Series
Product dimension：87.5*91.5mm
Product Description: It is stainless steel keypad of waterproof and dustproof, adopt rubber desig,
and with digital keys and 6 function keys, the keys are compactlayout and it with 2.0mm long-travel. It is assembled from inside to outside, the total thickness is 28mm(Including bottom case); It adopts
the design of whole stainless steel overlay, rubber keys and laser engraving, and with the precision tooling, the surface treatment beautiful and magnificent.
Product Application：
It mainly applied to various kinds of place of no regulation or semi-regulation information
terminal.For example Internet terminal, University, Market, Hotel, Bank, Airport, Station, and
another information station of public place, Automatic ticket rendor, Gas station, Automatic Teller
Machine(ATM), Public telephone ect.
Mainly Features：
1. Both of stainless steel panel and keys can good protect to avoid the deter vandals, even
under bad condition, it still can work well.
2 It is adopted rubber assembling, Effective for waterproof effect.
3. After the keypad is installed, it is looks beautiful and generous, plug and play.
4.Metal keypad surface is good to guard from thieves, and it is difficult to bending and be out, so
it can prevent key off and damage.
5.We can customer made all kinds of keypad with multiple languages as per the customer’s needed.
can meet varying country and make different styles.
6.It is easy for installation, supply PS2,USB interface mode to contact the host computer for
keypad operation.
Mechanical Specifications：
1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.
2. Design of the key: Square Key with character of laser engraving and corrosion.
3. Key Size: 13.8mm*13.8mm，
4. Key`s travel ：1.0mm
5. Lifetime of the key: Operating more than 2Million per key.
6. Strength of the key: 1.2N+/-0.1N (Contact with strength)
7. Front Panel: import printing-brush SUS304 stainless steel with 1.5mm thickness.
Electric parameter：
1. Operating current: Direct current+5V/-5%
2 working current：20mA
3 Expected life-time：>5yer
4. Button switch technology: Rubber key
5. Interface Technology：USB，PS2，R232，8PIN
6. Operating System：DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation：
1. Operating Temperature：-20℃to+60℃
2. Storage Temperature：-30℃to+70℃
3. Relative Humidity: 30-90% without Condensation dew
4. Atmospheric Pressure：50-100Kpa
5. IP Level :IP65( static state ) / IP (Dynamic state)
